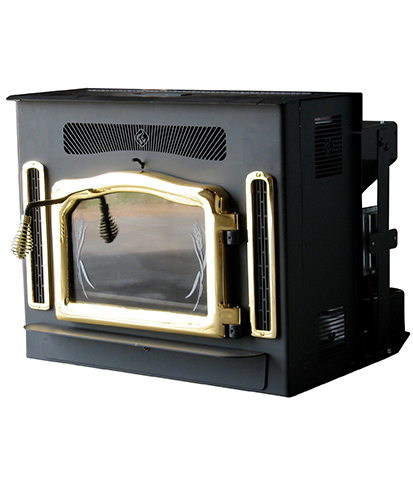

As the household name for heating alternatives who offers dependability and quality you know and trust, American Energy Systems Inc. has expanded their time tested and Flex-fuel technology with the addition of the Crossfire. The Crossfire boasts the Country Flame brand name, far exceeding any competitive product.
The Crossfire Insert conveniently lights with an electric igniter. It comes with five heat level settings, and offers the option of being thermostatically controlled. The Crossfire Insert has a stir rod for self cleaning burn pots and is approved for use with zero-clearance fireplaces. This efficient, safe heat source will add beauty and comfort to your home.
- 97% Efficiency
- Maximum Heating Capacity: 54,000 BTU
- Heavy Gauge Steel Construction
- 230 Pounds Corn
- Hopper Size 75 pounds
- Black, Gold or Nickel Door & *Trim Options
- Anti Clinker Stainless Steel Stir Rod
- Air Wash Equipped for Cleaner Glass
- IntelliChoice™ Touch Pad Control
- Room Air Blower Standard
- Mobile Home Approved
- Approved for Installation into Zero-Clearance Fireplaces
- Thermostat Ready
Your Country Flame Crossfire Fireplace Insert gives you the elegance that fits your home decor. Designed with versitility in mind, your Crossfire will give you years of trouble free operation with forward thinking technology to burn the fuels for today and tomorrow.
Today, you can eliminate the wasted dollars going out the chimney on that old drafty fireplace and start putting those dollars back into your pocket. Thank you for making the responsible choice to preserve our natural resources with a Crossfire Flex-fuel Fireplace Insert from American Energy Systems Inc.
- Clean top heat exchangers, empty ash drawer if needed, clean firepot
- Open draft slide out all the way , burn for a few minutes and then return to setting, fill fuel hopper
- Clean fly ash behind all clean out slides
- Clean firebox and firepot areas, vacuum out hopper fines
- After glass cools wipe with damp cloth to clean ash accumulation
- Remove firepot and check that the air holes are all open
- Clean all areas in firebox, cleanouts
- Clean exhaust pipes, cleanout tees, check connections if needed – We recommend Love-Less Ash vacs for ash removal. For more information, please visit www.lovelessash.com.
Spring Cleaning – Yearly Maintenace
- Empty hopper of all fuel, vacuum and oil lightly
- Spray chain with light oil, adjust if needed
- Vacuum all electrical motors and back of unit cabinet
- Clean out firebox area, lightly oil
- Remove brick board (if applicable) and spray light oil on inside of stove
Warranty information: MagnuM Country Flame series “Crossfire” Fireplace Insert – 5-year warranty on structural components, 1-year warranty on electrical components.
Your CountryFlame series Model CF-04 Crossfire Fireplace Insert comes with the best warranty in the industry. American Energy Systems feels that the best warranty is the one that does not need to be used. With that in mind, we set out to build the best product possible.
In the event that you do have a problem with the operation of your appliance please read your warranty information over carefully. Make sure that you have sent in your warranty registration or have filled it out online within 30 days of purchasing your Country Flame product. We want to make sure that your needs are taken care of properly and right away. To do this, please contact the place of business where you purchased your Country Flame appliance. They are required to administer warranty and service your appliance. If you cannot get a hold of them please contact our warranty department at firstname.lastname@example.org.
Please be sure to read your warranty guidelines supplied with your appliance. If for some reason you have misplaced your warranty papers you can take a look at the latest warranty for your product online here at the MagnuM website. If you are having a venting or installation problem please contact your local place of business where these items were performed. They are responsible for taking care of those issues.
When submitting a warranty claim, make sure that you send in proof of purchase, serial number and model of appliance, date of purchase, who installed product and pictures of the appliance, installation inside and outside of the home and a detailed description of your problem. This information must be submitted by email to email@example.com.
The Country Flame series model CF-04 Crossfire Fireplace Insert has been the industry leader for more than 28 years. A typical drafty masonry fireplace will exit up to 14,000 cubic feet of heated air out of your home causing your heating bill to soar.
Installing your Crossfire CF-04 Fireplace Insert not only stops that heat loss but will give you warm comfortable heating up to 99% combustion efficient with over 83% overall efficiency. Isn’t it time for you to put those heating dollars back into your pocket?
See how well MagnuM is working for our customers by reading some of our customer review stories.
Is it less expensive to burn corn or wood pellets?
If you are going to purchase both kinds of fuels, and depending upon where you live, both types of fuel can be very close in price. For the farmer who harvests corn and has a plentiful supply, the corn stove becomes very economical.
Do your stoves require electricity?
Yes. Country Flame appliances need electricity in order to work. If you want to run your corn stove during power outages, you will need to purchase a battery backup and inverter. These can be purchased at local retailers such as Best Buy and Circuit City.
Do your Flex-fuel stoves have an ash pan?
Yes. The Country Flame line of Corn, Wood Pellet, Flex-fuel Stoves have convenient lift-out ash pans.
Can the Country Flame Flex-fuel stoves be connected to a thermostat?
Yes. Simply set the thermostat to the desired temperature and the Country Flame Stove will do the rest. And with the Country Flame IntelliChoice control board, the corn stove is equipped to operate either semi-automatically or manually with 5 heat settings. The choice is up to you.
Are the Country Flame Flex-fuel stoves approved for mobile home use?
Yes. For mobile home use, you must use the outside air connection found on the back of the stoves.
What is the voltage requirement for Country Flame Corn/ Wood Pellet / Flex-fuel stoves?
All models require standard household current 120 volt 60 hertz. Grounded outlet and correct polarity. A surge protecter is required.
What would cause my stove to make my house smell like smoke?
Unlike wood stoves that work by natural draft, Country Flame Flex-fuel Stoves work by a forced air, vacuum system. In order for your stove to work properly, the venting system must be completely sealed so it will vent the smoke outside. If you are experiencing smoke smell, your venting may not have been completely sealed when installed. If this is not the case, the chimney could be blocked, or the door may not have been adjusted correctly during installation and sealed properly, or the door seal gasket may need to be replaced. You will need to contact your local dealer or installer to correct this problem.
When I press the ON/OFF button to start my stove, the light turns green but in a few seconds the control board goes into the “highway patrol” mode. What is the problem?
This usually means that the control board senses no vacuum present. The vacuum line may be plugged with ash between the vacuum switch and the exhaust blower. First, try cleaning the stove. Before cleaning, DISCONNECT POWER CORD. Clean the nipple on the exhaust blower (remove orange rubber hose) with an uncoiled paper clip (should go into the nipple approximately one inch). Next, try cleaning the exhaust blower and check your venting to see if something may have plugged the venting. Next, check the wiring between the control board and vacuum switch. If this does not work, then the vacuum switch, exhaust blower, or control board may be bad. Please contact your local Country Flame dealer or installer to help.
Why does my stove sometimes go out when it’s on the lowest setting?
You could be giving your stove too much air. Slide in the adjustable air control underneath the hearth extension at ¼” intervals to slow down the air flow until you reach the desired results. Or it could be that your firepot needs to be cleaned, or there is blockage in the feed system (auger). If these are not the cause, the setscrew on the auger shaft connecting the auger to the auger motor could be loose. Your local Country Flame Dealer can help you.
My stove is turned off but the exhaust blower came on and ran for a while. What’s up?
If there is a brief interruption in your electricity, the exhaust blower will come on for ten minutes and then shut off. This is a safety feature built into the stove. The exhaust fan removes any unburnt gas from the firebox. If you don’t use your pellet stove for long periods, unplug it so the exhaust fan will not come on.
My stove doesn’t seem to burn as well as it did at first. The fire is very lazy even with the air adjustment control all the way open. What is the problem?
Your firepot or burn pot is probably plugged. Also, there could be a buildup in the chimney pipe or venting. Refer to the owner’s manual for proper cleaning and maintenance of your stove.
If I let my stove run out of corn, do I have to prime the auger again?
Yes. To prime the auger shaft, hold in the on/off button for 15 seconds or until the auger light starts flashing green. When corn begins to drop into the firepot, press the on/off button again for five seconds to turn off the prime mode. Now re-start the stove by holding the on/off button for five seconds until the on/off light turns green.
Why doesn’t my control board light up when I plug my stove into an electrical outlet?
The power receptacle may not have proper voltage. The fuse in the pellet stove may have blown or the control board may be bad. Call your local Country Flame Dealer for service.
