The MagnuM Winchester Pedestal series has a 45+year, time-tested technology for pellet stoves, corn stoves and Flex-fuel combustion that will give you peace of mind. The MagnuM Winchester family of renewable heating appliances will complement your home with decor options like Nickel doors and trim.
Your MagnuM Winchester will be easy to operate yet has the latest in Tri-level combustion technology, electronic control center and optional auto ignition, perfect for burning a variety of Flex-fuels. No need to turn your MagnuM off when there is a shortage of one fuel. Your MagnuM will burn a variety of wood pellet, corn and other Biomass specialty fuels for today and into the future.
The large Pedestal ash pan and up to 68 pounds of fuel capacity will keep you warm for up to 56 hours between fuel loads while reducing your maintenance time to a minimum. If sleek European styling and 42 years of proven dependability is what you are looking for, then the MagnuM Winchester is for you.
Our fully trained and certified Dealers and Installers are waiting to make your MagnuM experience positively warm and inviting. Start saving on your heating bills today by adding the WIN-AC MagnuM Winchester to your home.
- The most custom options in the industry
- True corn, biomass and agri-fuel burning
- Large fire viewing area
- Environmentally friendly
- Supports local farmers and communities
- Saves you money even when the price of corn fluctuates
- Overall efficiency as high as 78%. ( EPA certified for Corn, not EPA certified for Wood pellets to the new standard, Does not qualify for Federal Tax Credits )

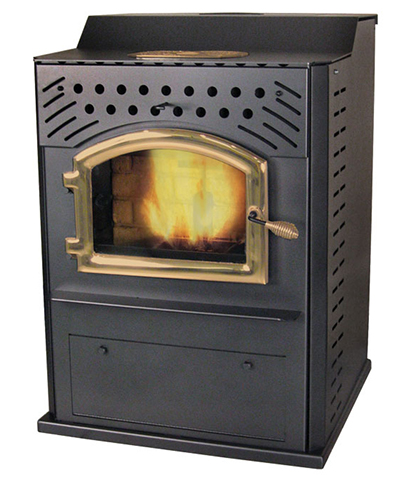

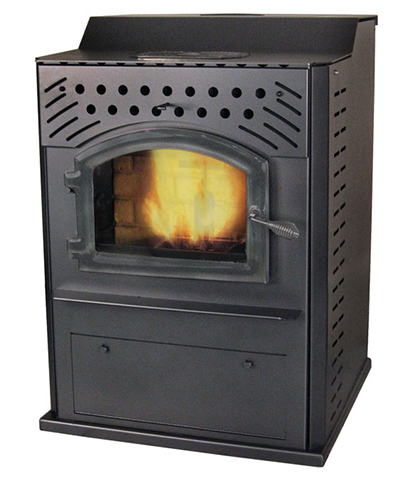

The Winchester is available in three different models: cabinet style, cabinet style with Queen Ann legs, and a fireplace insert.
All models are available in 4 paint options: metallic black, honey glow brown, forest green, sky blue; 2 plating options: nickel, gold, 3 glass etching options: leaping white tail deer, pheasants in flight, an eagle soaring.
As a true corn, biomass, agri-fuel burning appliance, you have the option of which fuel to burn and the versatility if a certain fuel is not available in your area. You can enjoy endless hours of being mesmerized by the intricate dancing of the fiery flames through the large arched door of the appliance.
All MagnuM appliances are EPA status exempt. This means no harmful emissions will be released into the environment. You will be burning natural renewable energies and within as little as four months more fuel is available for consumption. Choosing renewable energies is the responsible decision to make, for today, tomorrow and generations to come. Action needs to be taken now to preserve what we have now.
You can support your local farmers by purchasing your fuels from them or local granaries. By purchasing your appliance from a small town dealer, you will receive small town service from friendly and reliable people you know. All dealers are factory trained and certified so you can be comforted knowing you will be receiving accurate information. You can support your community’s economy by purchasing from small local dealers where you are going to make a friend rather than “big box stores” to whom you are just another sale.
Even when the price of corn may seem high, for years everyone has paid much more to heat their homes with electricity, propane or fuel oil. Once our petroleum fuels are depleted they are gone, they can not be restored. The price for petroleum fuels will continue to rise do to increased demand and limited availability or the need to import.
- Clean top heat exchangers, fill fuel hopper, check and clean firepot
- Run unit on higher setting for 5-10 minuts, then reset to original position
- Clean fly ash behind all cleanouts, check door seals, check venting tees
- Clean lip above brick board, empty ash pan, clean firepot
- After glass cools wipe with damp cloth
- Remove firepot and check that the air holes are all open
- Remove brick board and remove plugs and clean behind wall
- Clean exhaust pipes, check connections and tees, vacuum out hopper – We recommend Love-Less Ash vacs for ash removal. For more information, please visit www.lovelessash.com.
Spring Cleaning – Yearly Maintenace
- Empty hopper of all fuel, vacuum and oil lightly
- Vacuum out back cabinet areas, clean vacuum tube
- Vacuum all electrical motors of dust
- Remove brick board and remove plugs and clean behind wall
- Remove brick board and spray light oil on inside of stove
Warranty information: MagnuM Winchester model WIN-ACP – 5-year warranty on structural components, 1-year warranty on electrical components.
Your MagnuM Winchester comes with the best warranty in the industry. American Energy Systems feels that the best warranty is the one that does not need to be used. With that in mind, we set out to build the best product possible.
In the event that you do have a problem with the operation of your appliance please read your warranty information over carefully. Make sure that you have sent in your warranty registration or have filled it out online within 30 days of purchasing your MagnuM product. We want to make sure that your needs are taken care of properly and right away. To do this, please contact the place of business where you purchased your MagnuM appliance. They are required to administer warranty and service your appliance. If you cannot get a hold of them please contact our warranty department at [email protected]
Please be sure to read your warranty guidelines supplied with your appliance. If for some reason you have misplaced your warranty papers you can take a look at the latest warranty for your product online here at the MagnuM website. If you are having a venting or installation problem please contact your local place of business where these items were performed. They are responsible for taking care of those issues.
When submitting a warranty claim, make sure that you send in proof of purchase, serial number and model of appliance, date of purchase, who installed product and pictures of the appliance, installation inside and outside of the home and a detailed description of your problem. This information must be submitted by email to [email protected].
The MagnuM Winchester series has been the industry leader for more than 28 years. Installing your MagnuM Winchester will give you warm comfortable heating up to 99% combustion efficient with over 83% overall efficiency. Isn’t it time for you to put those heating dollars back into your pocket?
See how well MagnuM is working for our customers by reading some of our customer review stories.
What makes the Winchester different than other MagnuM Flex-fuel Stoves?
It has a new step top design, a new improved heat exchanger and new burn technology for higher efficiencies. The Winchester has a sleek cabinet design with a step top to give it a popular and unique look. The Winchester is also available as an insert to convert a drafty, inefficient wood burning fireplace into an efficient Flex-fuel burning appliance. The Winchester insert is accompanied by a standard shroud that can be installed as a built-in fireplace with your own custom surround. Queen Ann style legs can also be added to the cabinet design for enhanced style, height and dimension. The Winchester, as with all of our appliances are available in four custom paint colors: metallic black, forest green, honey glow brown, and sky blue.
What is new about the heat exchanger?
The heat exchanger capacity has doubled in size and is accompanied by a newly designed wrap around air shell. This improves the heat transfer and results in higher efficiency of the Winchester.
What is the new burn technology in the Winchester?
A new firepot design has been incorporated into the Winchester that redirects the air flow into the firepot so corn and other fuels can be burnt more efficiently. The new firepot combined with the new improved heat exchanger provides the Winchester with state of the art technology.
Does the Winchester have a fuel stirrer?
No, the Winchester does not require a fuel stirrer to efficiently burn a variety of fuels. Fuel stirrers are offered in other MagnuM products.
What kind of fuels can I burn in the Winchester?
Dried corn, wood pellets, and a variety of other Flex-fuels such as grass pellets, wheat, barley, rye, oats, cherry pits, olive pits and waste paper pellets can be consumed as fuel in the Winchester. A mixture of these fuels may also be combined and burnt at one time.
Why is corn, wood pellets, and Flex-fuels as renewable energies better to burn than fossil fuels?
Fossil fuels such as oil, gas and coal have limited availability and are price volatile. On average it only takes four months to grow a renewable energy such as corn. By using corn for heating purposes, we can assist in decreasing our use of fossil fuels and other rapidly depleting energy sources. By reducing the demand of fossil fuels, their cost will stabilize. Burning corn and renewable energies for heating our homes allows us to support our local communities and their economies by keeping our business local and reducing the need of importing fuel.
Does the Winchester start by itself?
The Winchester has an optional automatic ignition system that can be ordered separately. Since a large percentage of our customers prefer manual ignition, we made the automatic ignition an option instead of a standard feature.
Can I use a thermostat?
Yes, a low voltage thermostat can be installed to provide you with your optimum comfort and fuel usage. A low voltage thermostat can be purchased from your dealer, or a local home improvement or hardware store. Be sure to follow the thermostat manufacturer’s installation instructions.
What is the heating capacity of the Winchester?
The Winchester has a heating capacity of up to 45,000 BTUs input and depending on heat loss and heat load can heat the average home design in a cold climate. The actual heating ability cannot be determined by the factory because of the many factors determining heating area capability. The Winchester has a variety of heat settings to meet the needs of a homeowner and to account for changes in the outside air temperature.
How long will the Winchester burn?
The Winchester has a hopper capacity of up to 68 pounds and a burn time of up to 56 hours, the longest of any MagnuM appliances. Your burn times may vary due to the quality of fuel, installation, heat setting, and the outside climatic conditions.
What is meant by DC models?
AC is alternating current as found in household electrical outlets and DC is direct current like that of 12 volt batteries. The DC Winchester models can operate on electricity from solar panels, wind power, batteries, or a large watt generator during a power outage. During standard operation, DC models operate on household electricity and will automatically switch to battery or other alternative power during a power outage. When the AC current is restored, the Winchester will automatically trickle charge the battery for future use. The battery is not included.
What is the routine cleaning and maintenance of the Winchester? How often must the Winchester be professionally serviced?
The heat exchanger should be cleaned daily and is easily done by pulling and pushing a rod that scrapes the fly ash off the heat exchanger tubes. The firepot should be checked or cleaned of build up daily and the clinker build up removed if needed. The ash chambers and the ash pan should be cleaned every 3 to 7 days depending on the model, your fuel and your burning habits. The exhaust system, motors and fans should be cleaned monthly or as needed with a chimney brush and/or an ash vacuum designed for pellet and corn stoves. An ash vacuum designed for fine ash makes the cleaning process easy and more effective by preventing tiny ash particles from releasing into the air and also as a safety precaution in case any hot ashes were to be accidentally vacuumed. There is an annual spring cleaning of the stove in which the auger, fans and motors are cleaned. Read the Winchester Owner’s Manual for complete instructions.
How is the Winchester vented?
The Winchester has direct vent capabilities and uses 3″ or 4″ corn venting or PL venting. This small diameter venting is inexpensive and easy to use. A certified MagnuM dealer or a HVAC certified person is required to install your MagnuM appliance. MagnuM appliances can virtually be installed anywhere in the home. The dealer will determine the flexibility of a vertical or horizontal venting installation.
Is fresh air required with the Winchester?
Yes, outside fresh air is required and should be connected to all MagnuM Flex-fuel appliances to operate properly. Utilizing outside combustion air aids the efficiency of the unit and keeps the heat in your home where it belongs.
How clean is the exhaust?
All American Energy Systems Inc. MagnuM appliances have surpassed stringent international safety, efficiency, and emission testing. All MagnuM appliances are EPA status exempt.

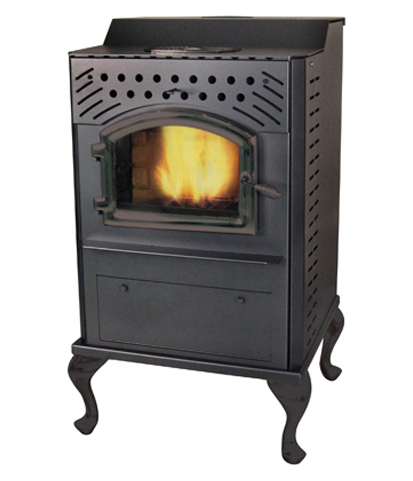

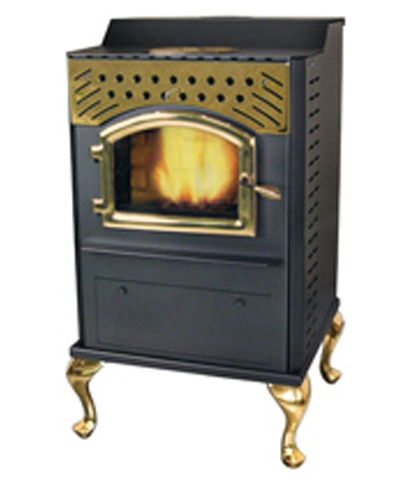

Can I add legs to the Winchester?
Yes! You can add Queen Ann style legs for more height and appeal in your choice of 24 karat gold, nickel, or any one of the four custom paint colors that we offer. New custom plating options will be available soon!
Are the doors and grills available in different finishes? How well will I see the fire?
The large arched door, grill and trivet are available in 24 karat gold, nickel, or any one of four custom paint colors that we offer. New custom plating options will be available soon. You will be romanced by the full view of the dancing fire. Elegant etched glass scenes of leaping white tail deer, pheasants preparing for flight, or a soaring eagle are offered to enhance the fires imagery.
Who is the manufacturer of the Winchester?
The Winchester is manufactured by American Energy Systems Inc.. Located in Hutchinson Minnesota, with over 36 years of expertise, American Energy Systems Inc. is the leader in the Flex-fuel industry with their MagnuM series appliances and wood log burning Zero Clearance Fireplace systems.
Where can I purchase a Winchester or a MagnuM stove?
Call us to learn more about all of the MagnuM appliances and to locate a dealer in your area where you can purchase your Flex-fuel burning appliance and do your part in conserving the environment. You will receive an immediate return on your investment by saving you money on your home heating costs.
